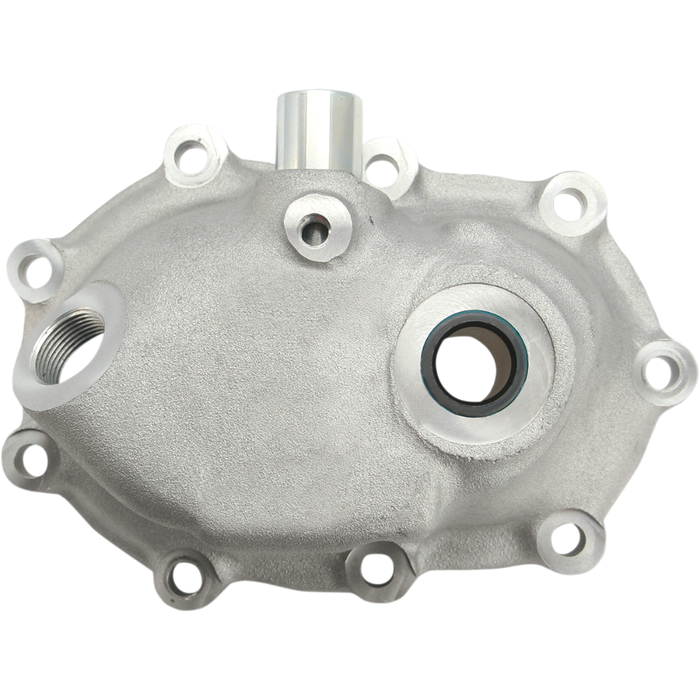

Cast aluminum S&S Kicker Cover for 1936-1986 Harley-Davidson Big Twin transmission featuring multiple bolt holes and threaded ports.

S&S Kicker Cover for 1936-1986 Harley-Davidson Big Twin

Regular price $255.95 Sale price$230.36 Save $25.59

SKU: 110-0383

/

Add Kicker Gears

Domestically sourced, Baker Kicker gears are the highest quality replacement set you can install

Add Kicker Arm

Chrome "straight" arm has slight offset and is suitable for most Big Twin and Sportster and accepts common kicker pedals; spring washer not included

Add Transmission Oil

Suitable for use in 4-, 5-, and 6-speed Harley-Davidson Big Twin transmissions

  • Low stock - 1 item left
  • Inventory on the way
  • Hassle-free 90 Day Returns
  • Free USA Shipping for Orders Over $99*
  • Free Tech Support M-F 8:30am-4:30pm EST
  • Fast Shipping—No Backorders, No Drop Shipping, No BS

S&S Kicker Cover for 1936-1986 Harley-Davidson Big Twin

Chrome aftermarket covers don't have the right look, especially for an early- or early-appearing motorcycle, and factory ones are often in need of repair or priced stratospherically. S&S has a good solution.

  • Inside, the cast area around the kicker boss has been reinforced; arguably the greatest point of failure on OE covers
  • Uses a single kicker shaft bushing
    • Eliminates dry outer bushing failures like the OE can suffer
  • Sealed using a modern small diameter seal for the kicker shaft, but it's not visible in operation
    • Replacement is a snap, but looks are unaffected
  • Boss imperfections in the casting are duplicated to represent the casting capabilities of the kickstart era
  • Cover is clearanced for the use of a large throw-out bearing and the kicker shaft bushing
    • No more grinding away material and test fitting
  • As close to original as you can get from a reproduction part appearance-wise
  • Clutch arm bushings are reamed and ready for install
  • Kicker bushings are reamed
    • Due to kick shaft diameter variance, the seal may need to be removed, the bushing reamed to size, and the seal replaced; a new seal may be required
  • 100% CNC-machined to achieve quality S&S standards
  • Includes gasket
  • Made in the USA
  • Accepts OEM hardware and filler plug
  • 1936-1986 Harley-Davidson Big Twin with four-speed transmission and kicker-type starter
  • Due to kick shaft diameter variance, the seal may need to be removed, the bushing reamed to size, and the seal replaced; a new seal may be required
  • Mid-control models may require the installation of two longer kicker studs into the transmission
  • 110-0383; replaces 1107-0498, 106-6479-00, 33277-36, 43-0148
