TC Bros. Stainless Steel Axle Kit

$62.95

Size

130-150mm Hardtail

180-200mm Hardtail

In stock
Inventory on the way

[{"id":49601878196417,"title":"130-150mm Hardtail","option1":"130-150mm Hardtail","option2":null,"option3":null,"sku":"104-0033","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TC Bros. Stainless Steel Axle Kit - 130-150mm Hardtail","public_title":"130-150mm Hardtail","options":["130-150mm Hardtail"],"price":6295,"weight":726,"compare_at_price":6295,"inventory_management":"shopify","barcode":"8D1-2","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":49601878229185,"title":"180-200mm Hardtail","option1":"180-200mm Hardtail","option2":null,"option3":null,"sku":"104-0032","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TC Bros. Stainless Steel Axle Kit - 180-200mm Hardtail","public_title":"180-200mm Hardtail","options":["180-200mm Hardtail"],"price":6295,"weight":726,"compare_at_price":6295,"inventory_management":"shopify","barcode":"4D1-2","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Hassle-free 90 Day Returns

Free USA Shipping for Orders Over $99*

Free Tech Support M-F 8:30am-4:30pm EST

Fast Shipping—No Backorders, No Drop Shipping, No BS

TC Bros. Stainless Steel Axle Kit

While the axle isn't a part of a chopper most people will pick out and admire, it is a really important part of any motorcycle build.

Premium alternative to using stock Sportster axles
Specifically constructed for compatibility with TC Bros. Sportster hardtails
Constructed from 17-4 PH stainless steel for the ultimate combination of strength and corrosion resistance
Choice of axle length to correspond with the hardtail kit you're installing
CNC-machined and centerless ground for precision fit to wheel bearings
Yield strength of 118,000 psi offers more than twice the strength of 1018 cold rolled steel
Dimensions
- 3/4" OD
- 5/8"-18 UNF thread
- Standard Width (130mm-150mm tire) Axle
  - 11 7/8" overall length,
  - 10-2/10" between shoulders
- Wide (180mm-200mm tire) Axle
  - 14-1/2" overall length
  - 12-9/10" between shoulders

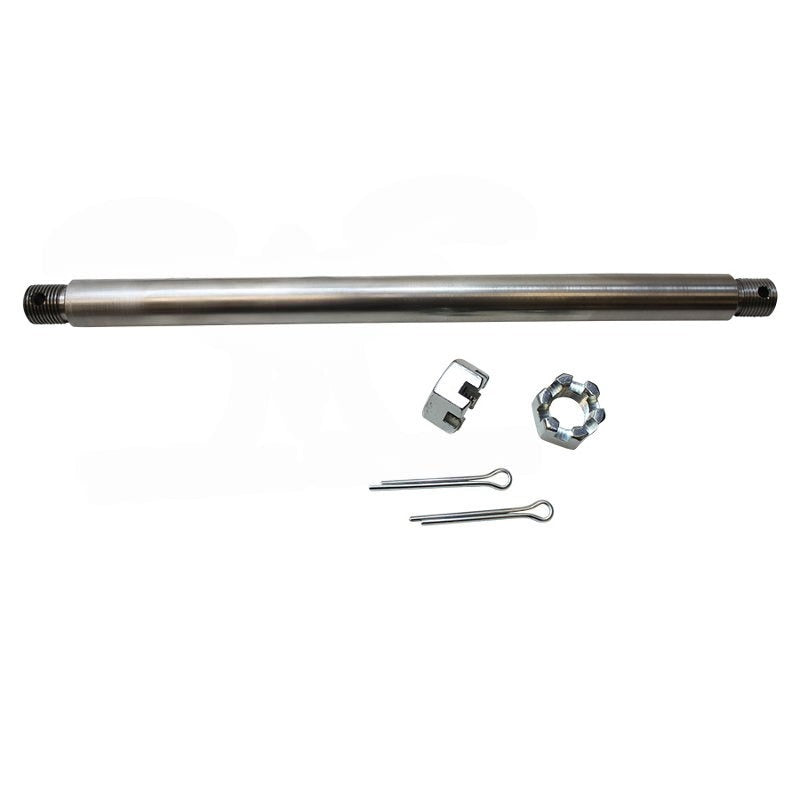

Kit includes 1 axle, 2 zinc-plated steel castellated nuts, and 2 zinc-plated steel cotter pins

If you're starting a project, your axle will serve many important functions. Yes, it's where the wheel lives, but it's also needed in the early stages of a build for checking chain line, mounting the fender, and even just moving your project out of the way so you can get the mower out of the garage.

Don't start out with a clapped-out piece that some other goober was beating on when it was time to mount a new tire—build your hardtail on a solid foundation.
