TC Bros. Weld-On Solo Seat Spring Mounts

A set of TC Bros. Weld On Threaded Solo Seat Spring Mounts bolts and nuts.

A set of stainless steel bolts and nuts, TC Bros. Weld On Threaded Solo Seat Spring Mounts.

A TC Bros. Weld On Threaded Solo Seat Spring Mounts with a CNC Machined torsion style seat spring attached to it.

$29.95

Type

Pin Retainer

Lock Nut Retainer

In stock
Inventory on the way

[{"id":49558717399233,"title":"Pin Retainer","option1":"Pin Retainer","option2":null,"option3":null,"sku":"106-0001","requires_shipping":true,"taxable":true,"featured_image":{"id":32137739796673,"product_id":7189409136833,"position":2,"created_at":"2022-04-04T20:16:09-04:00","updated_at":"2025-09-24T10:06:44-04:00","alt":"The TC Bros. Weld-On Solo Seat Spring Mounts by TC Bros. include two metal pins, two washers, two rubber washers, and two R-clips—perfect for solo seat installations—shown on a white background.","width":800,"height":800,"src":"\/\/tcbros.com\/cdn\/shop\/products\/106-0001_2.jpg?v=1758722804","variant_ids":[49558717399233]},"available":true,"name":"TC Bros. Weld-On Solo Seat Spring Mounts - Pin Retainer","public_title":"Pin Retainer","options":["Pin Retainer"],"price":2995,"weight":227,"compare_at_price":2995,"inventory_management":"shopify","barcode":"8A1-2","featured_media":{"alt":"The TC Bros. Weld-On Solo Seat Spring Mounts by TC Bros. include two metal pins, two washers, two rubber washers, and two R-clips—perfect for solo seat installations—shown on a white background.","id":24434607816897,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/tcbros.com\/cdn\/shop\/products\/106-0001_2.jpg?v=1758722804"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":49558717432001,"title":"Lock Nut Retainer","option1":"Lock Nut Retainer","option2":null,"option3":null,"sku":"106-0047","requires_shipping":true,"taxable":true,"featured_image":{"id":32138655760577,"product_id":7189409136833,"position":3,"created_at":"2022-04-04T22:18:48-04:00","updated_at":"2025-09-24T10:06:44-04:00","alt":"A set of TC Bros. Weld On Threaded Solo Seat Spring Mounts bolts and nuts.","width":800,"height":800,"src":"\/\/tcbros.com\/cdn\/shop\/products\/106-0047a_1.jpg?v=1758722804","variant_ids":[49558717432001]},"available":true,"name":"TC Bros. Weld-On Solo Seat Spring Mounts - Lock Nut Retainer","public_title":"Lock Nut Retainer","options":["Lock Nut Retainer"],"price":2995,"weight":227,"compare_at_price":2995,"inventory_management":"shopify","barcode":"4L1-2","featured_media":{"alt":"A set of TC Bros. Weld On Threaded Solo Seat Spring Mounts bolts and nuts.","id":24435527516353,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/tcbros.com\/cdn\/shop\/products\/106-0047a_1.jpg?v=1758722804"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Hassle-free 90 Day Returns

Free USA Shipping for Orders Over $99*

Free Tech Support M-F 8:30am-4:30pm EST

Fast Shipping—No Backorders, No Drop Shipping, No BS

TC Bros. Weld-On Solo Seat Spring Mounts

Traditional hinged solo seats should be positively retained at the rear of the bike so the springs stay captive.

CNC-machined
1018 cold-rolled steel
Ready to weld on
Pin-type retainer post is 3/8" diameter; fits most common seat springs
Lock nut-type retainer stud is stainless 5/16"-18 thread; fits most common seat springs
Lock nut-type retainer recommended for use with torsion (hairpin) springs
Base is 1" diameter with a 1 1/8" radius coped into the mount; can be used with 1" and 1 1/4" cross tubes with light fabrication
Made in USA

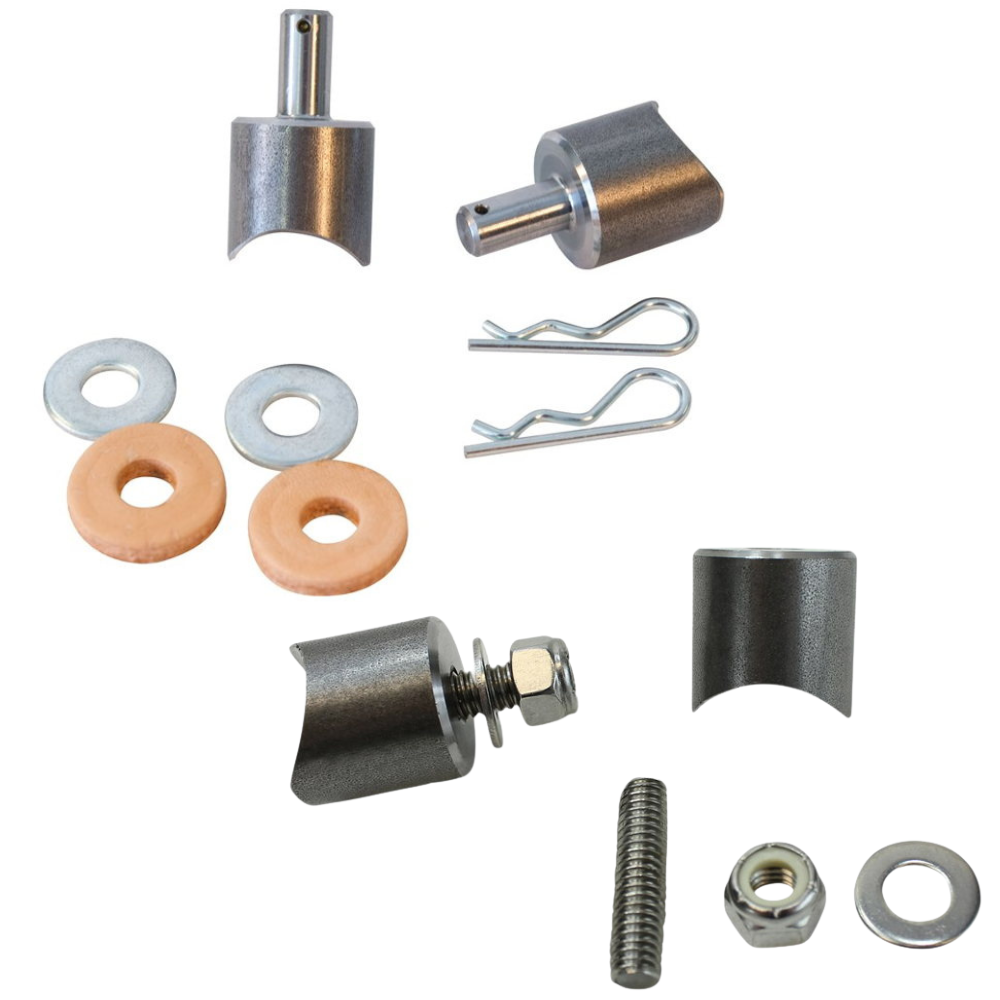

These studs are the surefire way to make sure your seat doesn't go flying up after you hit a great big pothole. Pin-type retainer kits include mounts, a pair of R-clips, steel washers, and leather cushions to keep your springs quiet and protect your paint. Lock nut-type retainer kits include a pair of stainless steel washers, a pair of stainless steel studs, and two threaded nylon insert locking nuts. These make a great addition to our front seat pivot to securely mount a set for nearly any application.
