Prism Supply 4-1/2" Round LED Headlight

Prism Supply 4-1/2" Round LED Headlight

Finding a functional, small, classic-appearing headlight today can be difficult. Prism has combined all the features most custom bike aficionados are looking for into one unit.

• Compact 4-1/2" light
• Modern LED light array
• Weather resistant—IP69K rated
• High and low beams
• Female 5/16"-24 mount pedestal makes bottom-mounting a snap
  • 5/8" and 1-1/4" mounting fasteners included; great for either through or blind mounting

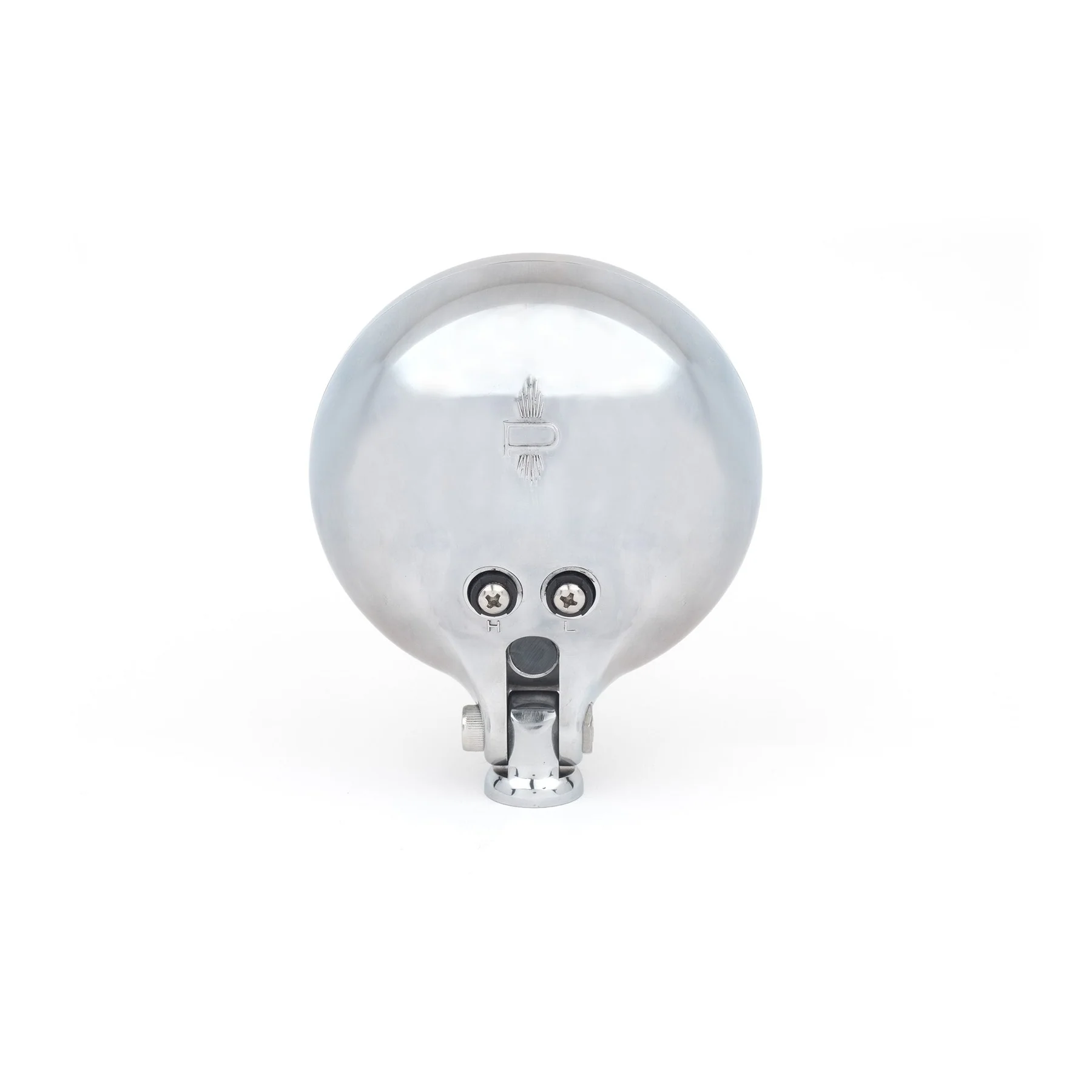

• Two rear terminals allow for easy wiring that doesn't require removing the lighting element from the bucket
• Operates from 9-16VDC
• Low beam current draw is .87A at 12V, and high beam is 1.5A at 12V
• 3000k color temp—white light with a touch of yellow hue; comparable to halogen lamps

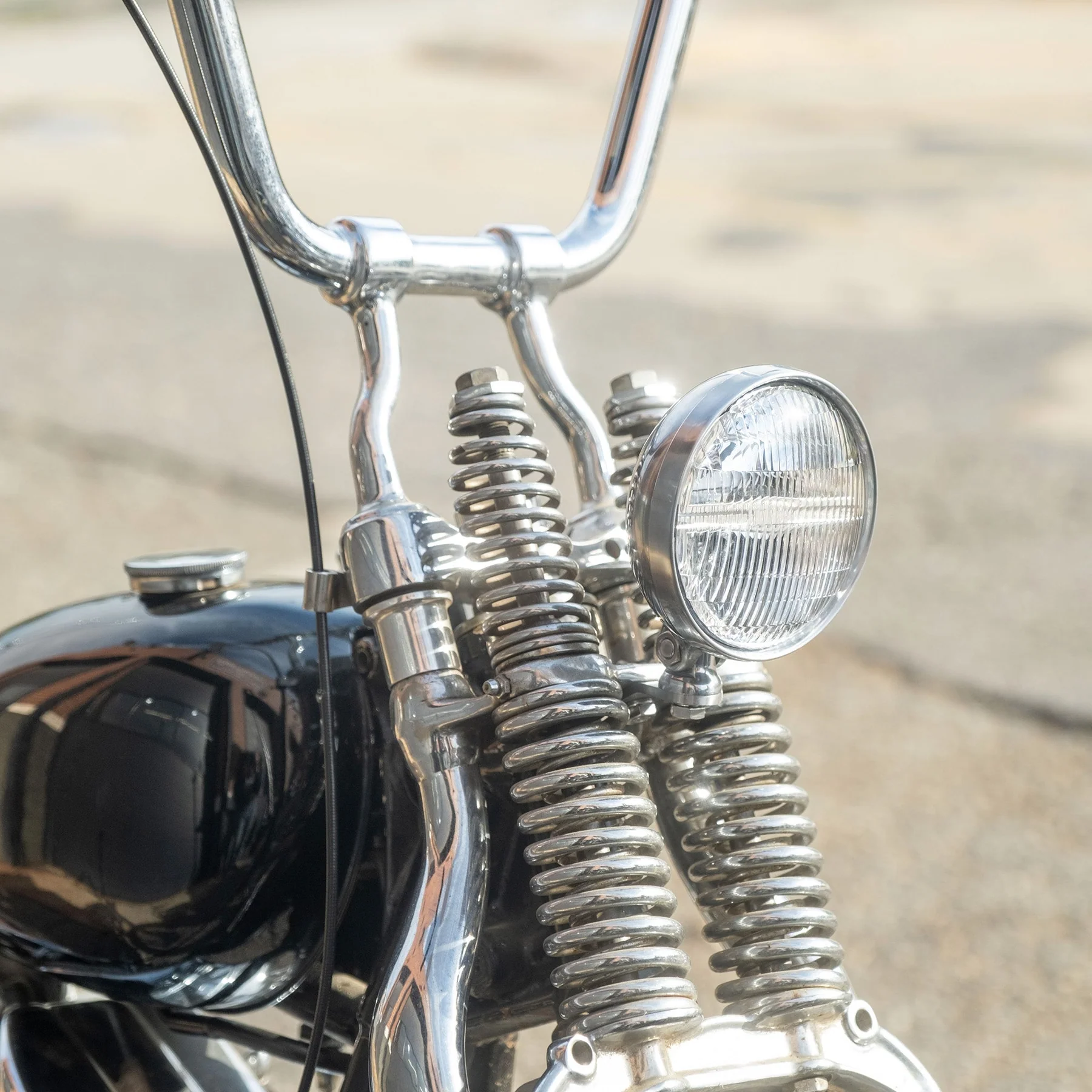

This headlamp features an LED lighting assembly that's not as susceptible to vibration damage as most halogen or incandescent units, but it doesn't have the spaceship look many traditionalists try to avoid. It has a defined high-beam cutoff in low-beam mode so you're not blinding oncoming traffic, and the cast housing and diffuser-type lens make this just an attractive, small headlight that looks just at home on a crusty, extended original springer as it does on a modern, polished stock machine. It's small, but unlike the lights of yore, that doesn't mean you have to give up illumination to have a crisp, clean front end appearance.

This light cannot be run in a top-mount configuration due to the beam split. If your bike has a top-mount (most commonly a visor or "eyebrow" bracket), you'll need to fabricate a bottom mount. For an easy, bolt-in solution, we suggest our bolt-on bracket that doesn't require permanent modification (like drilling the lower tree).
