TC Bros. Weld-On Hardtail Kit for 1982-2003 Harley-Davidson Sportster
SKU: 103-0017
Add Solid Engine Mounts
Required for installation
Add Chain Drive Conversion Kit
Required; OE belt and pulleys cannot be used due to additional stretch in frame
Add Chain
Premium X-Ring with rivet-type master link; 120 links
Add Seat
King & Queen options require tall sissy bar
Add Seat Mount Kit
Weld-in kit to mount seat to a TC Bros. hardtail with no fabrication
Add Rear Fender
Radiused correctly for either 16" or 18" rear wheel with vintage tire
Add Sissy Bar/Struts
Supports the rear of the rear fender on rigid frames; complete kit

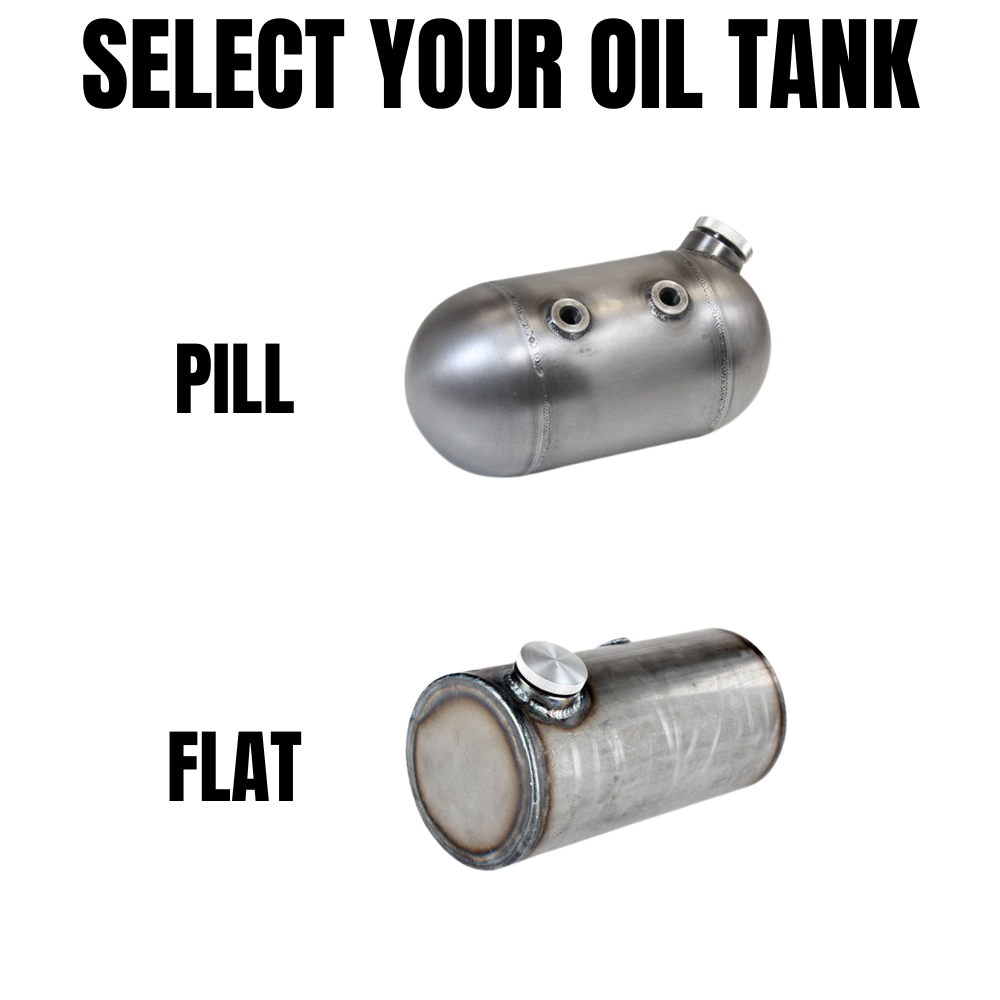

Add Oil Tank
Pill and Flat tanks require provisions to mount
Add Oil Tank Mounting Kit
Used in mounting TC Bros. Pill or Flat round oil bag to Sportsters with TC Bros. hardtail kit
Add Battery Box
Only compatible with Group 14 batteries
- In stock
- Hassle-free 90 Day Returns
- Free USA Shipping for Orders Over $99*
- Free Tech Support M-F 8:30am-4:30pm EST
- Fast Shipping—No Backorders, No Drop Shipping, No BS
TC Bros. Weld-On Hardtail Kit for 1982-2003 Harley-Davidson Sportster
This TC Bros. Sportster Hardtail kit is designed to be the highest quality, most complete, and easiest-to-install kit on the market.
- 100% made in the USA quality
- Crafted with CNC mandrel-bent .120" wall USA-made steel tubing
- Hardtail incorporates 3” of stretch and 5” of ground clearance for a great looking stance with a stock length front end
- Included bolt on frame alignment jig for an easy install
- 1-1/4" OD rails are the same diameter as original frames for a seamless-looking transition
- Designed in 3-D CAD software for a perfect fit
- Includes all required hardware and install instructions
- Uses donor bike's stock wheel, tire, brake, axle, and spacers
- Tubing slugged at all frame weld points for strength and CNC-machined at all frame attachment points for a perfect fit and easy welding
- 3/8" thick, CNC laser-cut axle plates feature threaded chain adjuster bungs include chain adjusters for 25mm or 1" diameter rear axles
- 2004 models with 3/4" axles require a 3/4"-to-1" conversion bushing kit (sold separately; P/N 104-0107)
- Lower crossmember includes battery box mounting slots for easy installation
- Accepts TC Bros. Holey Battery Box
Our hardtail kit is the smart choice for those looking to heavily modify an XL. By using our kit, you can retain your existing title and registration to prevent insurance and licensing headaches that come with complete replacement frames. Best of all, keeping that paperwork as-is won't devalue your motorcycle like special construction or self-assembled titles can.
We can help you build your Sportster right—we're with you through the whole job and have other complementary items that will help you avoid time-consuming fab work, including TC Bros. battery boxes, oil tanks, seats, lighting, and fenders. Be sure to check out our other products when planning your project.
- Solid motor mount kit (required): 105-0190
- Exhaust 109-0200
- Seats: 106-0066, 106-0067, 106-0068, 106-0069, 106-0070, 106-0071
- Seat mounting kit: 106-0227
- Fender: 105-0136; requires use of 130mm (5") width tire
- Sissy bar: 104-0080, 104-0081, 104-0089, 104-0090
- Oil tank: 105-0132, 105-0149
- Oil tank mounting kit: 105-0191
- Battery Box: 104-0027
- Chain drive conversion kit (required): 111-0023 or 111-0043
- 530 drive chain (required): 111-0005 or 111-0006
- Springer forks: 113-0082, 113-0084
- Rear wheels: 115-0061, 115-0062
- Brake kit: 102-0101, 102-0102, 102-0103
- 3/4"-to-1" conversion bushing kit (required for 2004 Sportster only): 104-0107
We have the knowledge, experience, and selection to get you everything you need to build your Sportster right including, battery boxes, oil tanks, seats, lighting, etc. Be sure to check out our other products!
